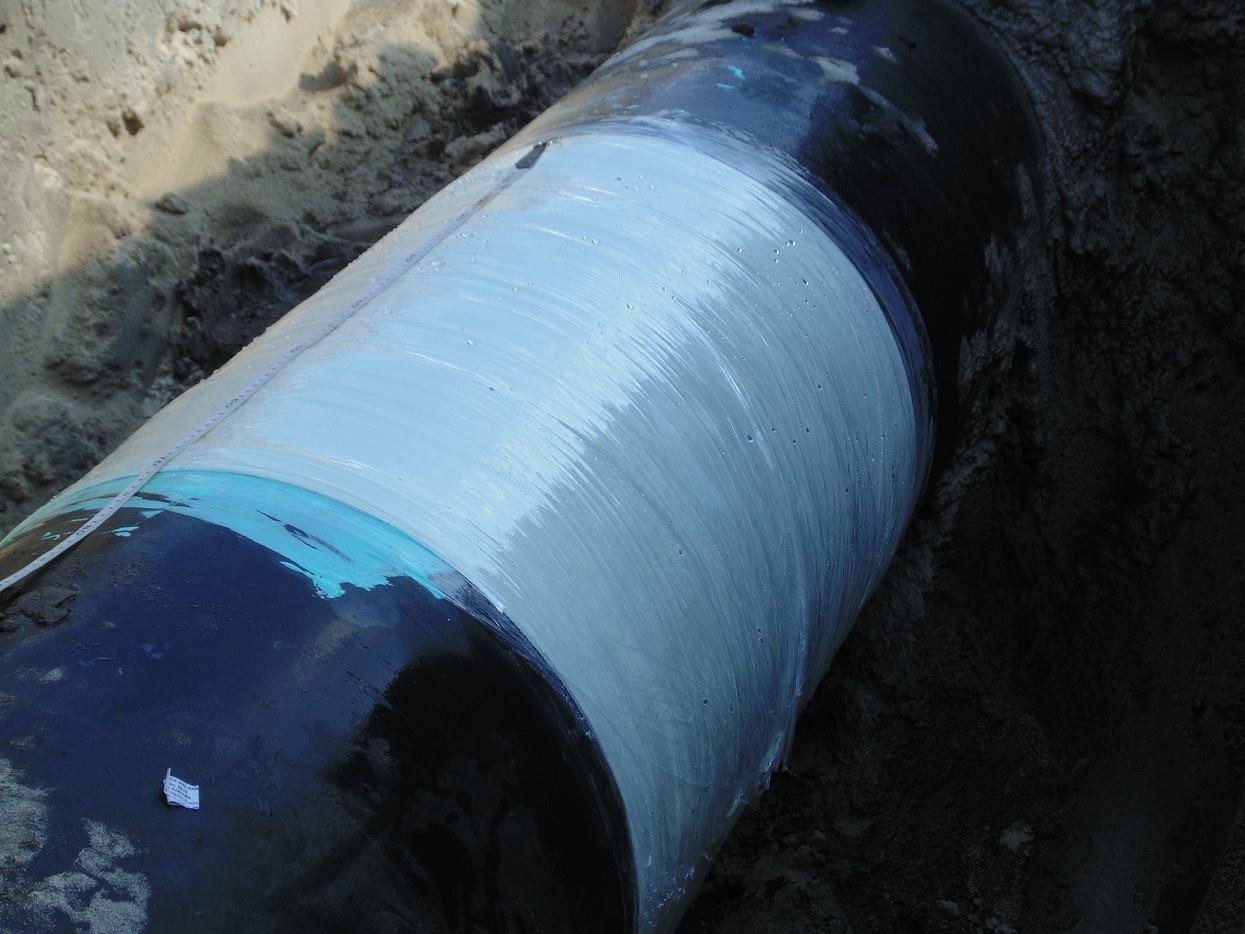

GC ROCK CASING WRAP/ ROCK CASING WRAP P

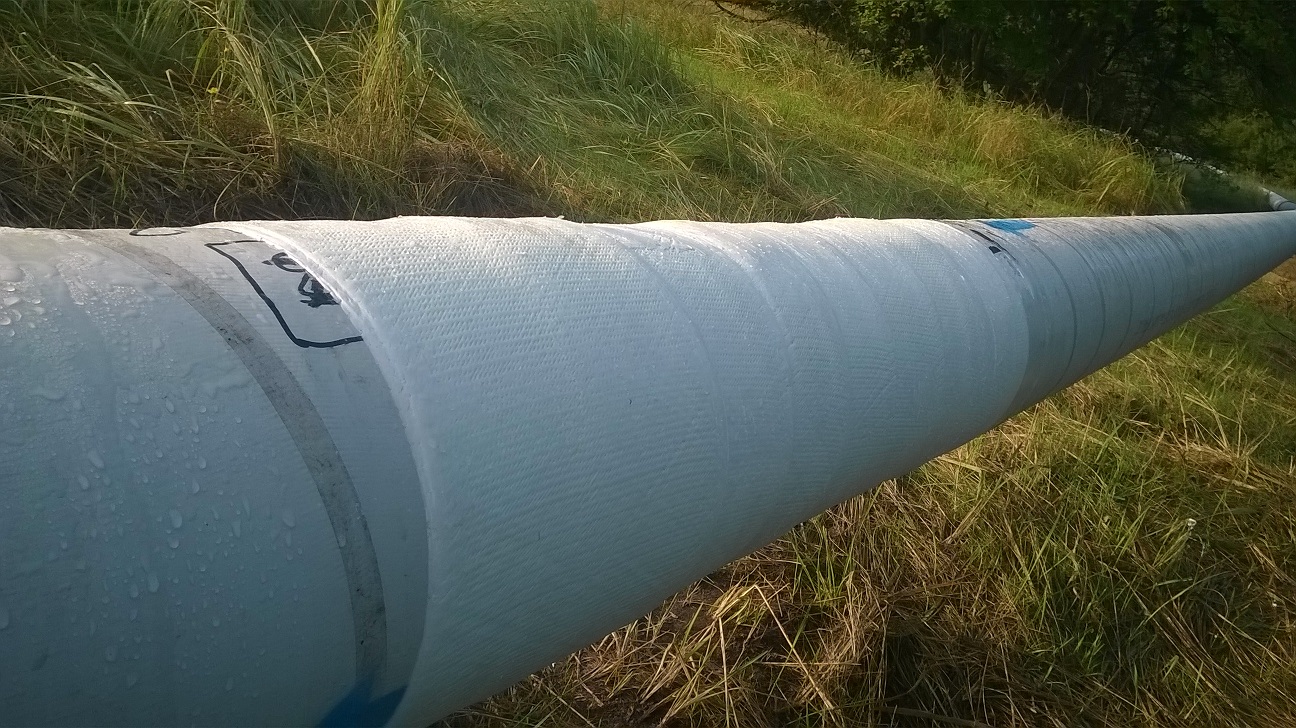

 is a composite repair material that includes a mat made of bi- or tri-axial woven high strength fiberglass and a two-component polyester resin. Its primary purpose is to protect factory pipeline isolation (Factory Applied Coating) and the isolation of welded joints on transmission pipelines of all types (Field Joint Coating). The coating made of GC WRAP RC-P material provides the highest quality additional protection for all elements of transmission pipelines that may be exposed to damage from horizontal directional drilling (HDD) operations.

Protection of the steel CLAMP/BRAC

UL. PSZCZYŃSKA 60

43-267 SUSZEC

GASCONTROLPOLSKA © 2018

Repair of water leakage artesian well

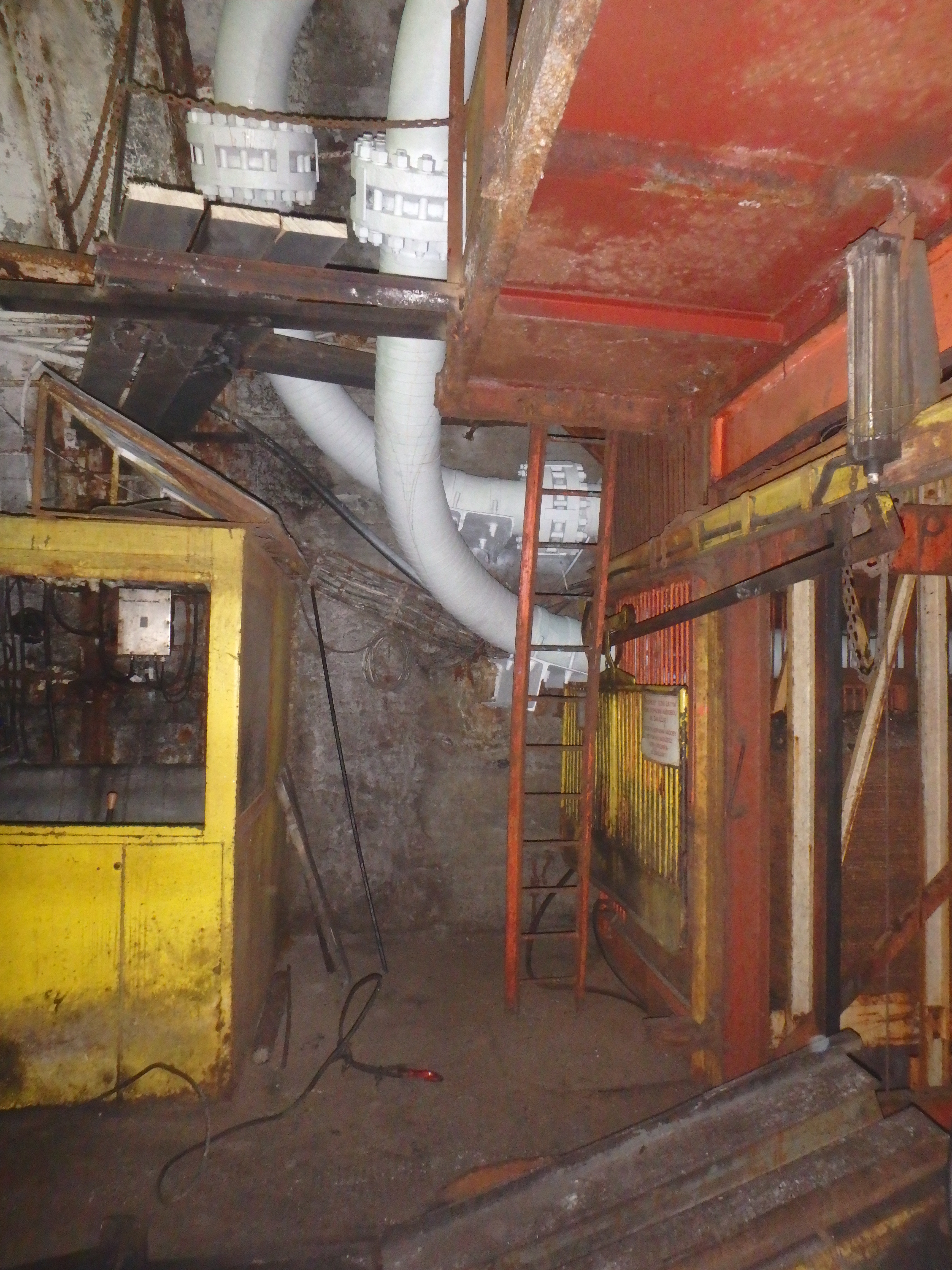

Strenghtening of DN300 PN160 pipeline, OKD ( Ostrava-Karvina) MINE

Removal of relief, Gas Storage

Weld reinforcement, SRP, High Pressure

Closure of the relief flange connection DN400

Reinforcement of welds of high pressure gas pipeline DN500

Repair of defects on high pressure gas pipeline DN500

Repair of external corrosion on high pressure gas pipeline DN379

Protection of welded joints high pressure gas pipeline DN325

Repair of deformations - dents of the pipeline Kiev-Kursk DN325

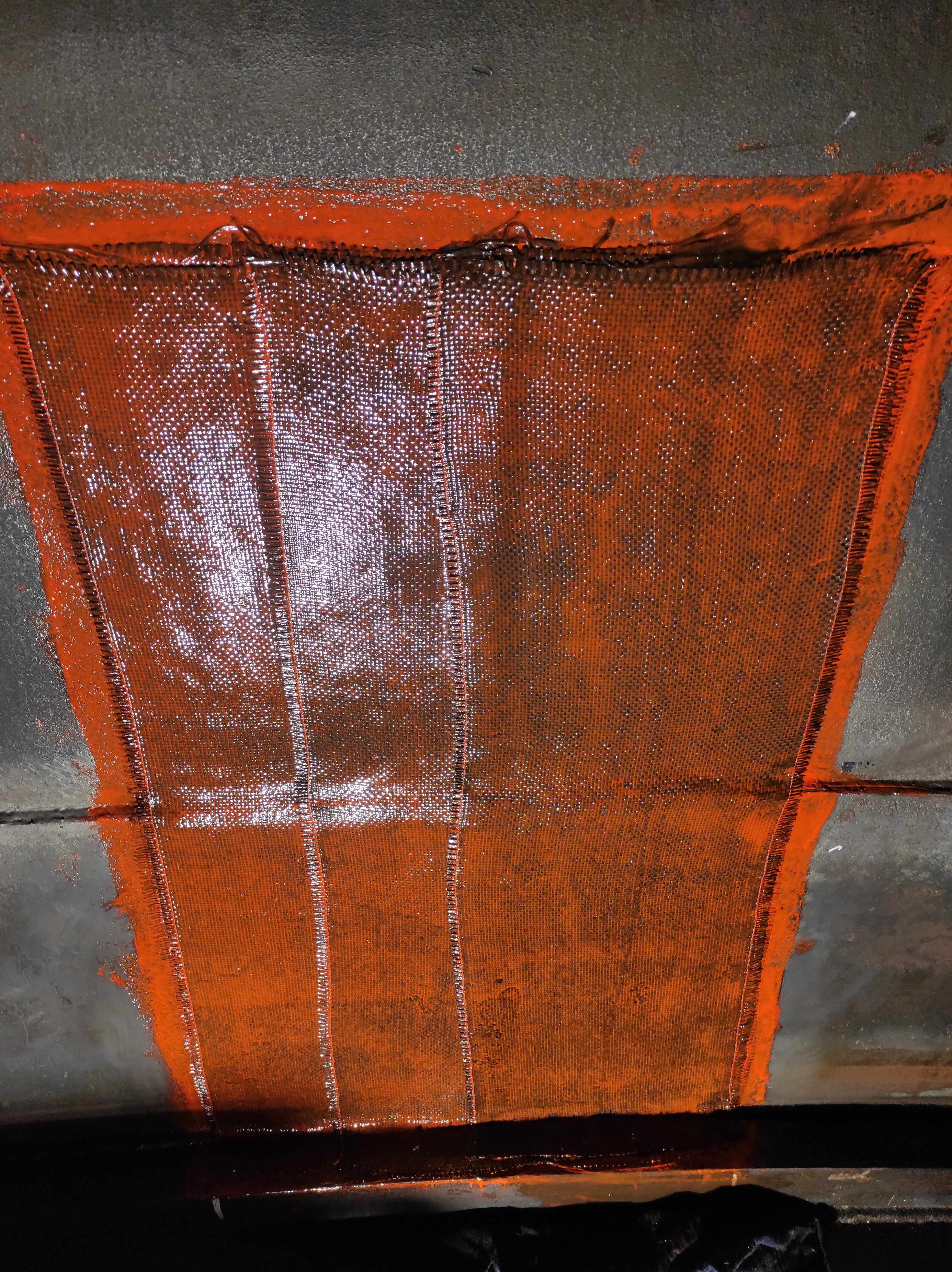

Reinforcement of the pipeline wall - internal patch

Strenghtening of welds - high pressure gas pipeline DN150

Repair of internal corrosion on the high pressure oil pipeline DN350MM

Repair of internal corrosion on the high pressure gas pipeline DN150

TECHNICAL ASSESSMENT FORM

This document is used to provide information on damage to the pipeline wall. According to the ISO 24817 standard, such damages are divided into:

• wall thinning <80% (type A)

• thinning> 80% or perforation - leakage (type B)

We encourage you to send the completed forms to assess the technical feasibility of the repair.

                                                                     DOWNLOAD  - - - - >

INDUSTRY SECTORS SUPPORTED:

• Gas industry

• Refinery and petrochemical

• Chemical, food processing

• Marine installations and facilities

• Minig

• Water and sewage systems

PRODUCT COMPIANCE WITH STANDARDS:

• ASME PCC-2 - 2011, Art. 4.1

• ISO TS 24817

• US DOT

• CSA Z662-07

• API570

• UDT, TUV, Oil and Gas Institute

GC LSK NP

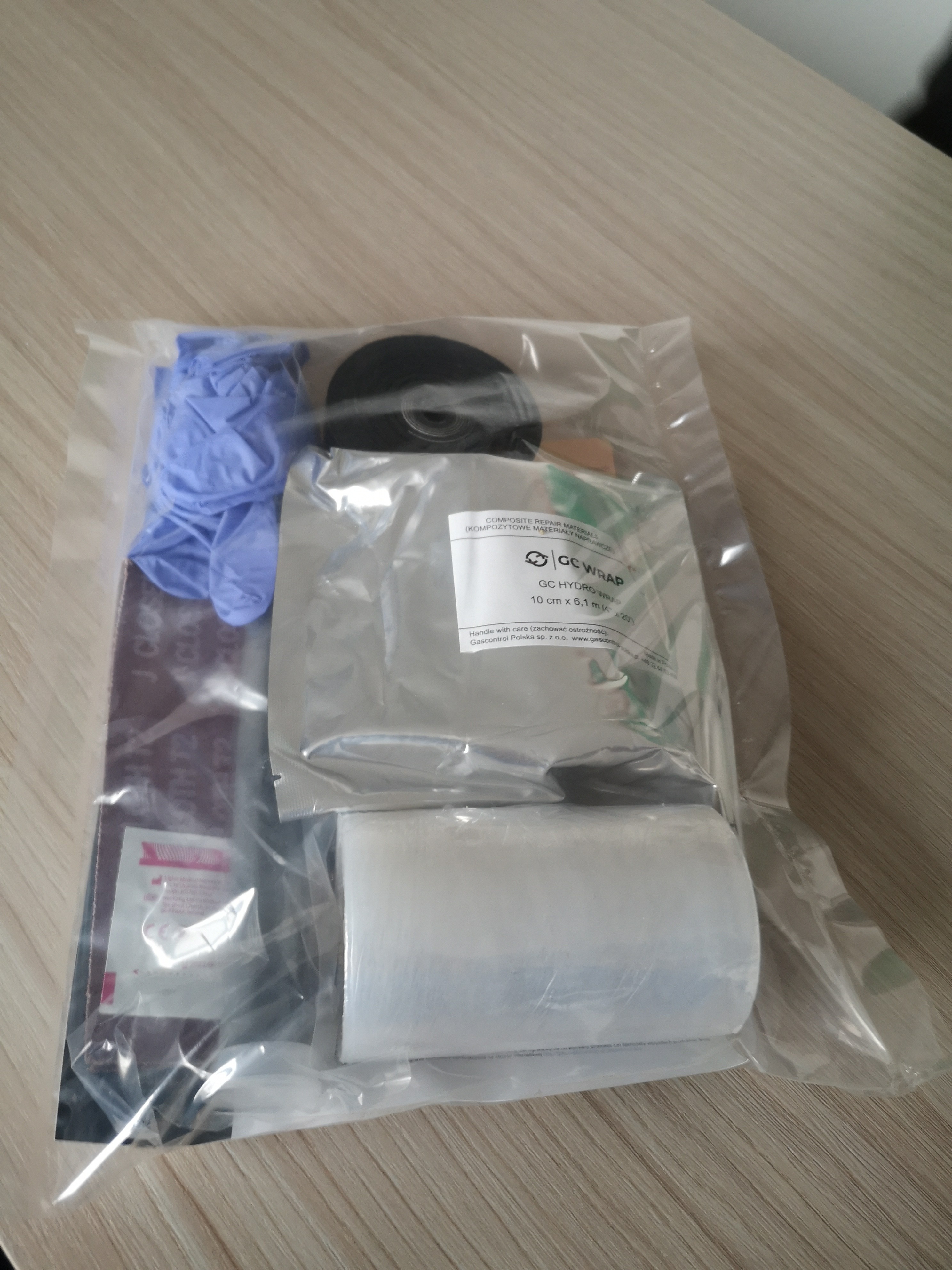

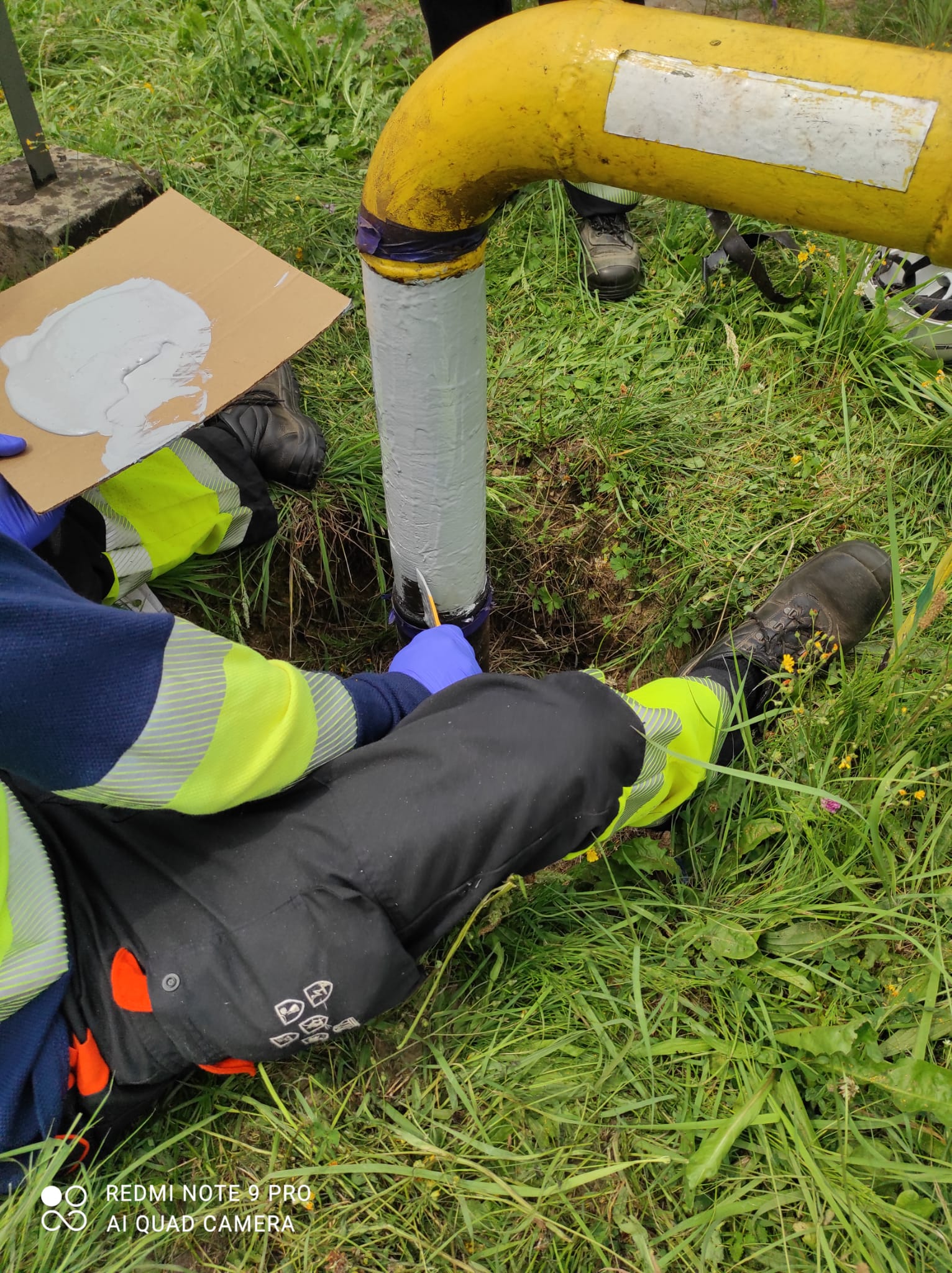

is a universal repair system designed by a team of experienced engineers to permanently remove leaks / vents (liquid and gaseous fuels) for pipes and fittings in a way that enables their further safe operation in conditions of temporary lack of pressure in the pipeline. The system consists of a two-component epoxy mass and an appropriate roll of GC Hydro Wrap composite material - a water-curing urethane resin impregnated in a biaxial fiberglass bandage that protects the repair permanently, creating a high hardness (75 Shore D) protective coating that tightly adheres to pipeline surface. Each kit includes accessories that are necessary to remove vapors and spills. Using the GC LSK WRAP NP repair system, it is possible to remove leaks and leaks on pipelines made of various materials (steel, PVC, copper, PP and others) and also on pipeline connections (socket joints, welds, glued and threaded joints) . The range of pipe diameters in which the GC LSK WRAP NP kits can be used is 10 mm to 250 mm. The diameter of the discharge / leak is 15 mm. The above parameters are the values ​​recommended by the manufacturer. The results of the work performed largely depend on the skills of the repair technician and his training.

GC LSK

is a universal repair system designed by a team of experienced engineers in order to permanently remove leaks / vents (liquid and gaseous fuels) for pipes and fittings in a way that allows their continued safe operation without shutting down the installation. The system consists of a two-component epoxy mass, a specially selected rubber tape, whose task is to keep the epoxy putty in the street / leak, and the appropriate size of a roll of GC Hydro Wrap composite material - a water-curing urethane resin impregnated in a biaxial glass fiber bandage that permanently protects the repair by creating high hardness (75 Shore D) protective coating that tightly adheres to the surface of the pipeline. Each kit includes accessories that are necessary to remove vapors and spills. Using the GC LSK WRAP repair system, it is possible to remove leaks on pipelines made of various materials (steel, PVC, copper, PP and others) and also on pipeline connections (socket joints, welds, glued and threaded joints). The range of pipe diameters in which the GC LSK WRAP kits can be used is 10 mm to 250 mm. The maximum operating pressure while cleaning a leak is 10 bar. The outlet diameter is 5 mm. The above parameters are the values ​​recommended by the manufacturer. The results of the work performed largely depend on the skills of the repair technician and his training.

GC CARBONWRAP

is a high-tech composite solution for restoring the original design specification of damaged transfer pipelines or pressurized vessels. Each repair is carried out using the engineering standards ASME PCC2 or ISO TS 24817 - international technical standards for high-risk repairs that are performed with composite materials. Gascontrol’s engineers have the FEA (finite element analysis) technology for both damaged pipeline installations and the GC CARBON WRAP composite repair system. The technology allows to strengthen the pipes in axial and circumferential directions, and also ensures even distribution of loads over the entire section of the pipeline or pressure vessel to be repaired. GC CARBON WRAP composite systems are designed to operate at operating temperatures from -50 ° C to +230 ° C with no pressure restrictions. Our composite systems can be applied by hand lamination, also on piping systems while they are in operation, without having to shut down for repair. GC CARBON WRAP is compatible with all pipe sizes and shapes, most substrates, and almost any piping configuration including tanks, flanges, fittings and more.

GC HYDROWRAP

is a system designed to strengthen pipes in a way that allows their further operation at the maximum allowable working pressure (MAOP) without shutting down the system. The system consists of a water-curing urethane resin impregnated with a biaxial glass fiber, thoroughly tested by an independent university and an international laboratory. The first component and the most unique part of the GC HYDRO WRAP system is a selected biaxial fiberglass material that provides circumferential and axial reinforcement and is one of the strongest non-metal repair materials on the market. The second element gives the system a bonding force. It is an impregnating urethane resin, which enables even load distribution over the entire repair section. In the case of repairs requiring surface modification (e.g. with extensive pits or irregular shapes), additional elements can be used - a primer and epoxy filler with high elasticity. These elements form a composite system stronger than steel. Structural repair creates a pipe around the pipe and each successive layer wound increases the pressure resistance in the pipeline. High technical parameters and compliance of the repair with ISO TS 24817 and ASME PCC-2 standards ensure a long service life - up to 50 years.
